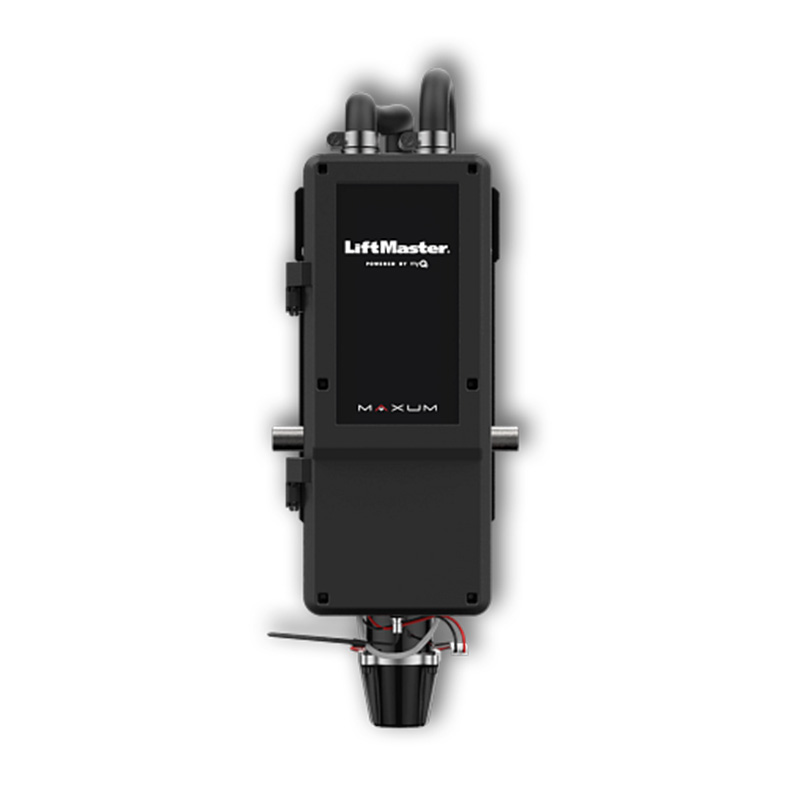

LiftMaster® JDC

This all-new MAXUM commercial door operator is a state‑of‑the‑art platform that introduces next-level versatility in a sleek, purpose‑built design that’s easier to install and service. With unrivaled performance and intelligence, the new line‑up will help today’s commercial facilities take the next step toward a smarter future.

• Drive system: Jackshaft
• Available in ½ HP (24VDC, DC Motor)
• Voltage/phase: 120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac 3PH (via tra120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac 3PH (via transformer); 600Vac 3PH (via transformer)
• Timer‑to‑Close conveniently and confidently closes the door automatically after a predetemined amount of time has elapsed
• Battery Backup, 2 batteries of 4.5A, provides seamless operation by providing standby power when the power is down
• Mechanical braking system that adds substantial door position control and prevents the door from being back driven
• Diagnostic and programmation on small form LCD display
• MyQ technology and WIFI allows you to securely control and monitor your gate operator from anywhere using your smartphone
• 3 Monitored Entrapment Protection Inputs, protect up to 3 entrapment protection points with every installation
• Manual disconnect when unlocked allows gate to be operated manually
• Auxiliary Relay Board (AUXREL), easy to install accessory board for auxiliary limit switches, lights, bells, horns, strobes, and other devices.
• Optional heater, added when quoted, operating temperature without heater -4°F (-20°C) – 140°F (60°C), with heater (HTR) -40°F (-40°C) – 140°F (60°C)
• Compliant with ANSI/CAN/UL325 standards
• Speed: Average of 12 inches (304 mm) per second.
• Warranty: 2 Years
